pantum toner not recognized — chip, contacts & reset

pantum toner not recognized is the message you’ll see when the printer can’t read the cartridge chip, the contacts are dirty, or firmware tightened validation. Use our pantum toner not recognized walkthrough to clean contacts, reseat correctly, choose the right reset chip, and stop the error from coming back.

pantum toner not recognized — quick diagnosis

Happens with one cartridge only: likely the chip or that cartridge’s fit.
Happens with every cartridge: inspect the printer’s spring pins and contact block.
Started after a firmware change: you may need a firmware-compatible reset chip and to disable auto-updates.
Clears after restart then returns during jobs: borderline contact/fit or a driver repeatedly rechecking supplies.

Safe prep before you begin

Power off the printer and unplug it. Have a lint-free cloth, isopropyl alcohol (70–90%) for contacts, good light, and—if available—a known-good cartridge.

Clean and reseat (the fixes that solve half the cases)

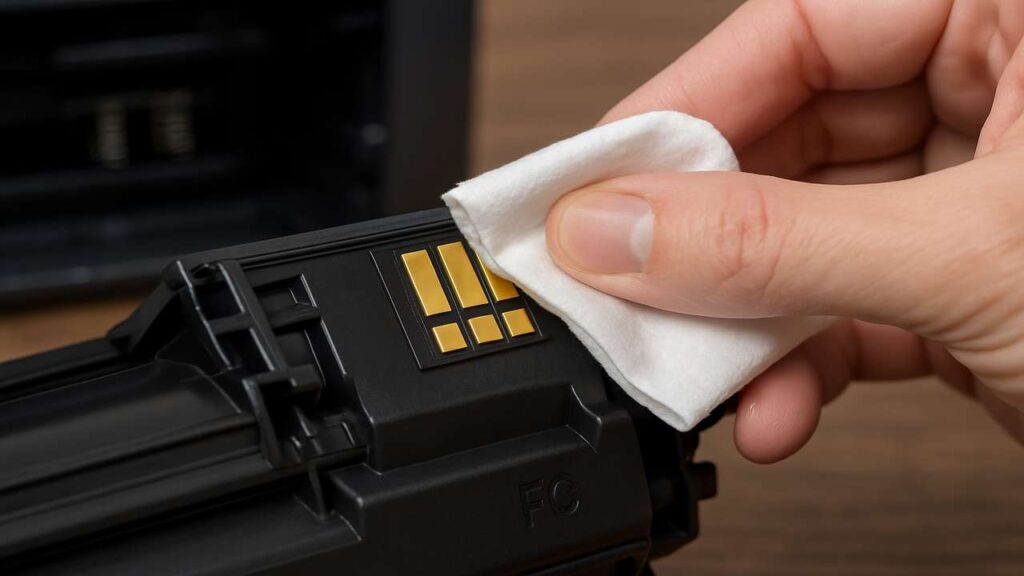

Remove the cartridge and inspect the gold pads on its chip.
Clean the pads and the printer’s spring contacts with a cloth lightly dampened with alcohol; let dry 60 seconds.
Reseat straight and firm until you feel a positive latch—no rocking.
Try a known-good cartridge. If it’s recognized instantly, the original chip is worn or incompatible.

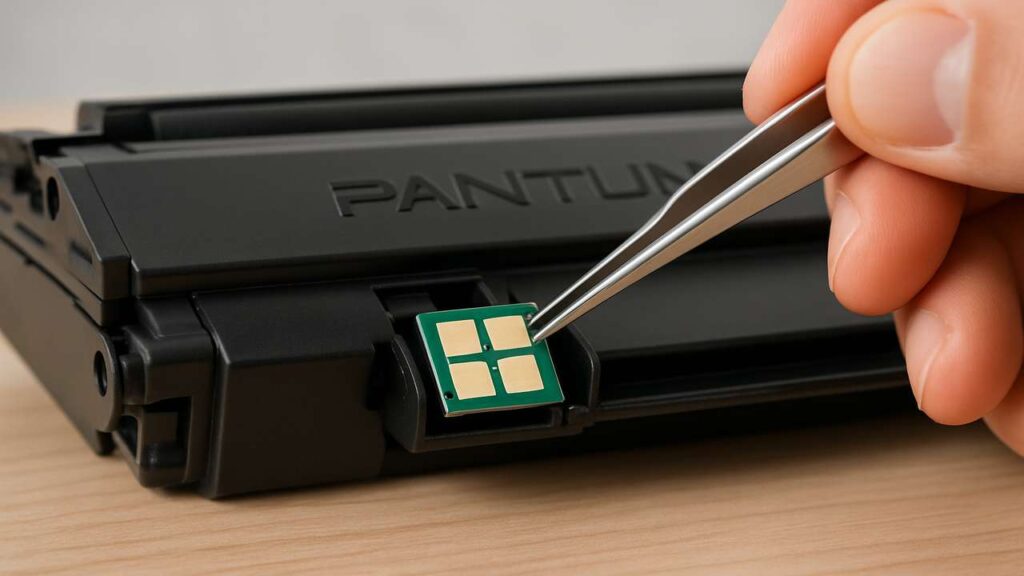

Choose the right reset chip (when replacement is needed)

Match the exact cartridge series (e.g., TL-4xx family used by common Pantum mono models).
If the issue began after a firmware update, pick a reset chip that specifies support for your firmware family.
Handle chips by the edges; avoid touching metal pads.
After installation, print a Supplies/Status page to verify the level resets and the ID is accepted.

Printer-side checks that people skip

Spring pins: With a flashlight, confirm each pin in the contact block stands proud and springs back when touched. A stuck/short pin won’t reach the chip.
Door & latch fit: If the front door doesn’t close tightly, the chip won’t seat; adjust hinges/latches and test.
Debris in the slot: Paper dust or label glue can lift the cartridge off the contacts—clean gently.

Firmware stabilization (prevents surprise lockouts)

Turn automatic firmware updates OFF in the printer menu/Web UI.
If recognition failed immediately after an update, reapply the same version to clear a partial install, or—if supported—roll back to the last stable build.
For shops/fleets, test new firmware on one pilot device for a few days before wider rollout.

Driver & network hygiene (to stop false rechecks)

Remove duplicate queues on the computer and re-add the printer by TCP/IP (fixed IP) so drivers don’t re-poll supplies mid-job.
Use a model-specific driver (PCL/PS/IPP Everywhere) rather than mixing universal/legacy packages.
Clear any stuck jobs—bad jobs can trigger supply validation loops.

After the fix: verify the result properly

Power on and wait until the printer is Ready.
Print a Supplies/Status page; the cartridge should show normal/OK with a valid level.
Send a small PDF test; confirm the message doesn’t return mid-print.
If recognition is intermittent, re-clean and re-seat; inspect the door fit and spring pins again.

Troubleshooting by symptom

Still “not recognized” with multiple cartridges → contact block/pins issue or a damaged harness; service the contact assembly.
Recognized only after power cycling → borderline contact or driver re-poll; fix seating and switch to a clean TCP/IP queue.
Drops to 0% quickly after reset → cartridge actually empty or toner clumped; level the cartridge by gently rocking side-to-side and retest.
Appears after connecting to Wi-Fi/LAN → a PC is re-sending a bad job or polling aggressively; clear queues and standardize the driver.

Prevent it from coming back

Keep a known-good test cartridge for each model to diagnose in minutes.
Store reset chips in anti-static bags labeled by series/firmware family.
Clean contacts during every cartridge change—10 seconds saves hours later.
Maintain LAN-only printers (no Internet egress) if you rely on third-party chips; update manually on your terms.

FAQs

Does cleaning really fix a recognition error?
Yes—oxidized pads and dusty pins are a top cause. A careful alcohol wipe often restores normal detection.

Can refilling alone clear the message?
No. Refilling adds toner but not a fresh identity; the chip usually needs to be reset/replaced.

Is it safe to block firmware updates?
Yes—if you adopt a manual update policy. Pilot first, then roll out intentionally.

The printer reads the cartridge, but pages are light. Is that related?
That’s toner/drum quality, not the chip. Level toner, check the drum, and run a cleaning cycle if available.

Which is more likely: bad chip or bad printer?
If a known-good cartridge works, it’s the chip. If none work, inspect pins/contacts and the latch fit.

Quick checklist

Contacts cleaned (cartridge + printer)
Cartridge seated firmly; door closes tight
Known-good cartridge test done
Reset chip matched to series + firmware
Auto-updates off; driver/queues cleaned
Supplies page OK; test print stable

Conclusion

A dependable fix for pantum toner not recognized comes down to three things: clean contact, correct chip, and stable firmware/driver. Work through the steps in order and you’ll restore cartridge detection—and keep it reliable on every refill.
