canon 5200 error fix — printhead cooldown & flush

canon 5200 error fix is the fastest way to recover from E5200/P08 when your PIXMA locks up mid-job. Use this canon 5200 error fix walkthrough to cool the printhead safely, decide whether you need a deep ink flush or a cartridge reseat, and get back to clean, consistent prints.

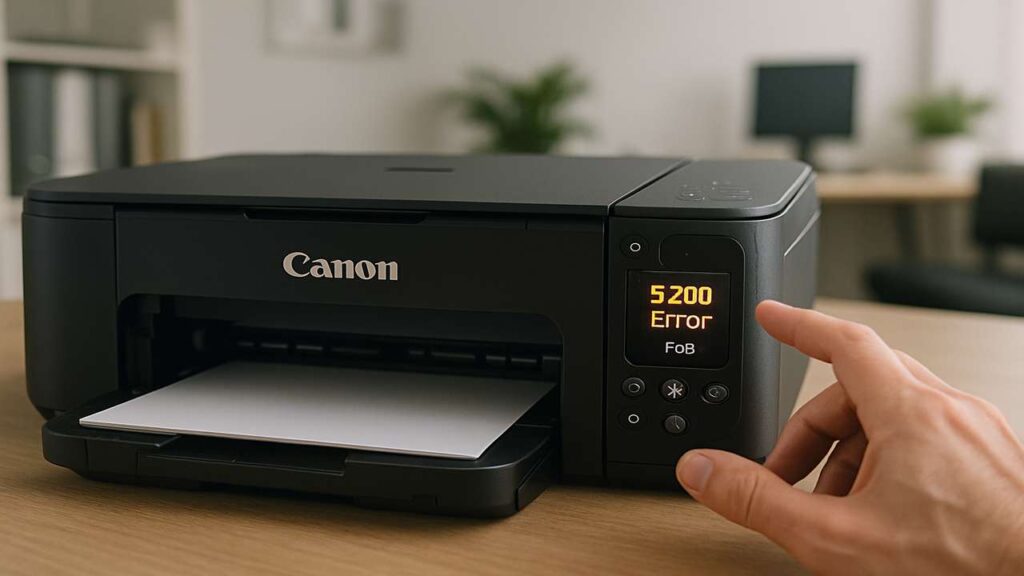

canon 5200 error fix — what the code means

5200 (often shown as P08) is a printhead temperature/ink system fault. The device stops to protect the head when it detects overheating, ink starvation, or a bad reading from the ink system. Good news: most cases clear with cooldown, proper ink flow, and a single controlled cleaning—no parts needed.

Before you touch anything

Power off the printer and unplug it for 10–15 minutes to cool the head and reset sensors.
Place the printer on a mat; keep lint-free cloths and distilled water handy.
If you recently ran multiple cleanings or large photo jobs, allow extra cooldown.

Quick wins that solve many cases

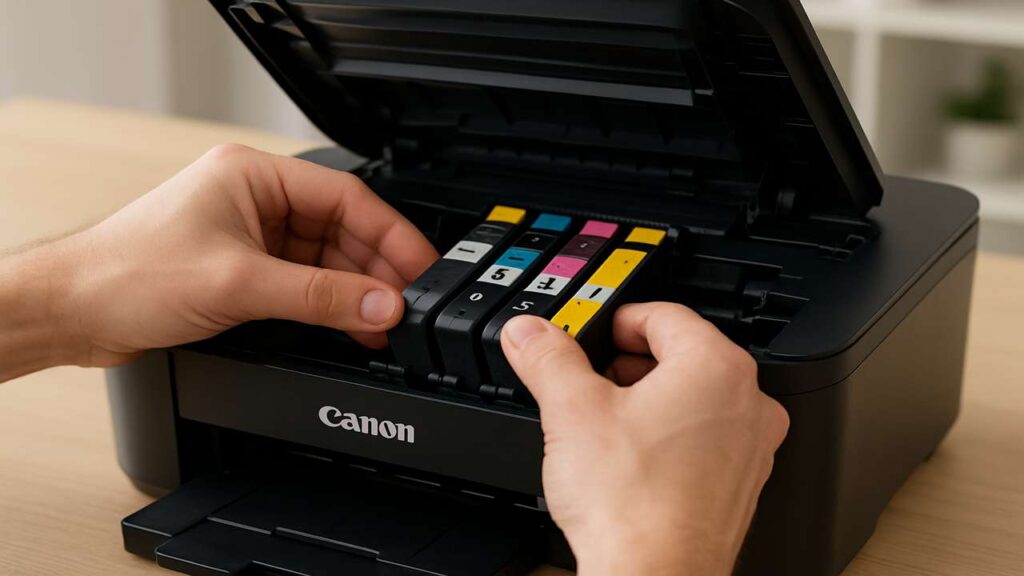

Reseat cartridges
Open the cover, unlock each cartridge, then reseat until it clicks. Mixed seating or loose locks can trigger 5200.
Ink level sanity
Low or uneven ink—especially an empty black—forces the printer to over-mix colors and run hot. Top up or replace the low color(s).
Vent checks
Make sure cartridge air vents aren’t blocked by tape/dust. A blocked vent starves ink flow and overheats the head.
Single cleaning only
After cooldown and reseat, run one standard head cleaning, then a Nozzle Check. If the pattern improves, stop there—excess cleanings add heat and waste ink.

If your model has a removable printhead

Many PIXMA/MAXIFY units let you lift out the head with the carriage latch.

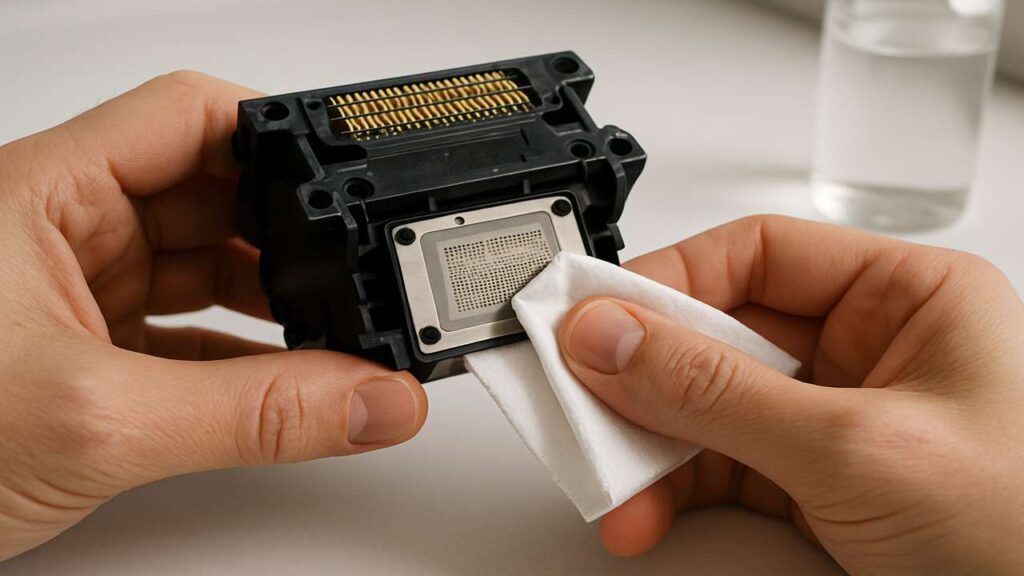

Safe flush for the nozzles (no electronics soaking):

Power off and unplug. Open the carriage latch and lift the head straight out by its handle.
On a shallow tray, place a folded lint-free paper towel soaked with warm distilled water.
Set the head nozzles-down on the towel for 5–10 minutes to dissolve dried ink. Keep the contacts high and dry—do not submerge electronics.
Dab the nozzle plate gently; repeat with fresh warm water if residue persists.
Let the head air-dry 15–30 minutes (no heat), reinstall, lock the latch, then run a single Nozzle Check.

Contact hygiene: Wipe the gold contacts on the head and carriage with a barely damp, lint-free cloth; let them dry fully before reinstalling.

If your model uses integrated-head cartridges

For two-cartridge models (Black + Tri-color) where the head is part of the cartridge:

Reseat both cartridges firmly.
Wick the nozzle plate: press it lightly onto a warm, damp paper towel for 5–10 seconds; you should see clear, even ink marks.
Replace any cartridge that shows weak or missing color after wicking; a failing cartridge can retrigger 5200.

Deep ink flush (menu option on some models)

Use only after the quick wins fail and you’ve confirmed adequate ink.

Run “Ink Flush/Deep Cleaning” once, then a Nozzle Check.
Avoid consecutive deep flushes—too many in a row can re-heat the head and refill the waste pads quickly.

When 5200 keeps returning

Ambient heat & airflow: Very warm rooms or blocked rear vents push temperatures up. Move the printer to a cooler, ventilated spot.
Purge/capping area: Dried ink on the cap pad or wiper prevents proper priming. With power off, gently clean accessible caps and wiper edges using lint-free swabs slightly dampened with distilled water.
Firmware sanity: If the error started immediately after a firmware change, re-apply the same build or step back to the previous stable release (if your model allows).
Head age: A head that triggers 5200 after a single small print—even when cool and well-primed—may have an internal fault. Compare with a known-good cartridge set (or a spare head, if available).

Prevent a relapse

Print a small page weekly to avoid aggressive priming after long idle periods.
Use quality, model-compatible ink; poor ink raises head temps and cleaning frequency.
Keep the printer powered on or use gentle sleep, not frequent hard power-offs (each startup runs hot cleaning cycles).
Disable automatic firmware updates if stability and chip compatibility matter; update manually only when a fix applies to you.

Troubleshooting by symptom

5200 appears during/after multiple cleanings → Cool down first; you’re heating the head repeatedly. Run one cleaning only after cooldown.
Good nozzle check, error at next job → Venting or airflow problem; check cartridge vents and room temperature.
One color always missing → Empty or failing cartridge; replace that color and retry a standard cleaning.
Error on power-up with no print → Contact issue or failing head; clean contacts, reseat, and test again.

FAQs

Is 5200 the same as B200?
No. 5200 is typically a temperature/ink flow issue; B200 points to a more serious printhead fault. Fix 5200 first with cooldown/flush; consider service if it behaves like B200.

Can I use alcohol for nozzle cleaning?
Use distilled water for the nozzle plate. Reserve isopropyl (70–90%) only for electrical contacts, sparingly.

How many cleanings are safe?
Start with one standard cleaning. If there’s no improvement, pursue physical flushing or cartridge replacement instead of repeated cleanings.

Will resetting counters alone fix 5200?
A power reset helps, but the lasting fix is restoring ink flow and cooling the head.

Quick checklist

Full cooldown (10–15 min) and power reset
Cartridges reseated; vents clear; ink levels OK
One standard cleaning → Nozzle Check
If removable head: nozzle-plate flush with warm distilled water
If integrated head: wick nozzles; replace weak cartridge
Clean contacts; verify airflow; consider firmware sanity
Test print; monitor for relapse

Conclusion

A practical canon 5200 error fix targets heat and ink flow: cool the head, restore even ink delivery, and clean the nozzle plate or contacts once—then stop and test. With careful handling and the right maintenance rhythm, your PIXMA should return to stable, streak-free prints without triggering 5200 again.
