CRUM Chip Programmer Circuit: Comprehensive Guide
Creating a reliable CRUM chip programmer circuit is essential for resetting toner cartridge chips. In this ultimate assembly guide, we’ll explain step-by-step how to build this programmer using standard USB and serial interfaces.
What is a CRUM Chip Programmer Circuit?
A CRUM chip programmer circuit allows users to reset and reprogram toner cartridge chips (Customer Replaceable Unit Monitor), extending cartridge life significantly after refills.
Required Components for CRUM Chip Programmer Circuit
- USB connector
- DB9 serial port connector
- CRUM chip/emulator
- Resistors (100Ω to 330Ω)
- SN74LS05DR protective chip
- Connecting wires
- Soldering iron and solder
- Multimeter

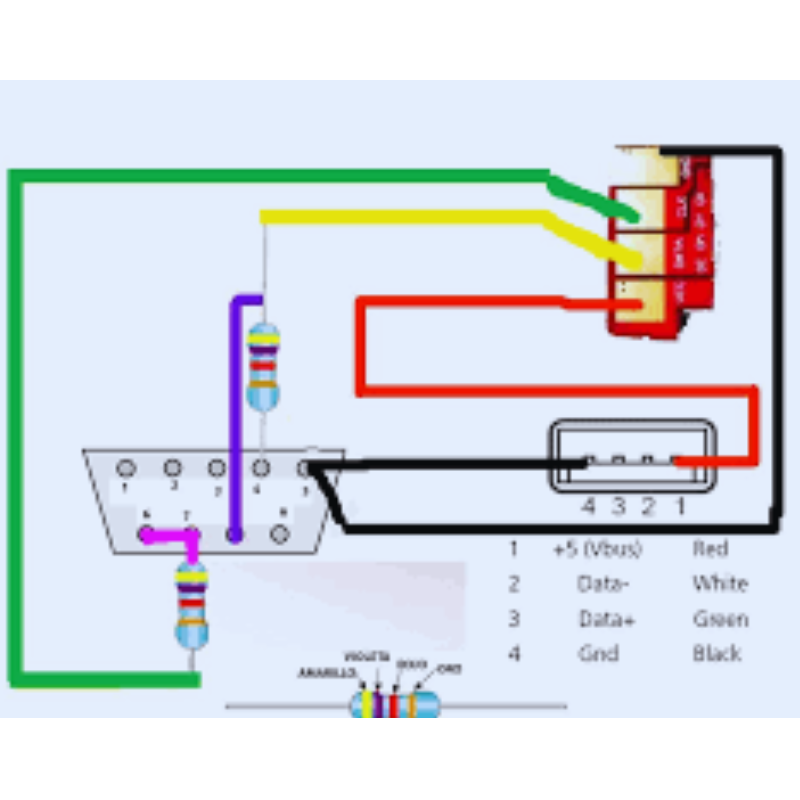

Step-by-Step Assembly of CRUM Chip Programmer Circuit
Step 1: USB Interface Setup
- Connect USB pin 1 (Vcc, +5V, red wire) directly to the power line of your circuit.
- Connect USB pin 4 (Ground, black wire) to the common ground line.
Step 2: Serial Port (DB9) Connection
- Link DB9 pin 7 (SCL, purple wire) and pin 9 (SDA, yellow wire) to your CRUM chip or emulator.
- Use 100Ω to 330Ω resistors as pull-ups on SDA and SCL lines for signal stability.
Step 3: Protective Chip Integration
- Insert the SN74LS05DR protective chip to safeguard the CRUM chip and serial port from voltage fluctuations and electrical damage.
Step 4: Connect the CRUM Chip
- Clearly label the CRUM chip pins: Vcc, GND, SDA, and SCL.
- Accurately connect each pin to the corresponding USB and DB9 interfaces.
Step 5: Circuit Soldering and Verification
- Carefully solder all connections, ensuring no short circuits occur.
- Validate each connection using a multimeter.
- Plug your circuit into a computer USB port to verify the correct functionality and connectivity.
How to Use CRUM Chip Programmer Circuit?
Once assembled, use specialized CRUM programming software to communicate with and reset the chip data, allowing toner cartridges to operate seamlessly after refill operations.
Tips and Precautions for CRUM Chip Programmer Circuit Assembly
- Ensure stable +5V supply from the USB port.
- Always cross-check connections carefully before energizing your circuit.
- Follow exact pin configurations for your specific CRUM chips.
Advantages of Using CRUM Chip Programmer Circuit
- Economical: Reduces the cost by reusing cartridges.
- Eco-friendly: Minimizes waste by extending cartridge life.
- Easy to use: Designed for hassle-free reprogramming.
